standard version "Sprinter HSKG":
- measures: approx. 55 x 50 x 30 cm (without base frame)
- weight: approx. 60 kg (without base frame)
- mains connection: 230 V or 50/60 Hz
- power: cold cutting 180 W | hot cutting 600 W
- temperature: continuously variable till max. 550°C
- speed: max. 48 m/min depending on machine settings
- material width: straight cut: max. 100 mm | 45°-bias cut: max. 70 mm
- cutting duration: continuously variable according to cutting material
- cutting angle: continuously variable till 45 ° (also straight and bias cut in change)
- cutting length: continuously variable max. 65 m
- ventilation: special exhaust ventilator 56 W
- material end: permanent monitoring per sensor
- cutting accuracy: according to material approx. +/- 1 mm
Optional facility:
- fitting base frame
- photocell for repeat identification (min. length 20 cm)
- fitting transport rolls
- Trapezschnitt
Further technical data are available upon request!
> Pastus - tensionless feeding unit for elastic products
- reduction of length tolerances for elastic products by tensionless feeding,
indication by sensor-controlling
- measures: approx. 30 x 30 x 30 cm
- mains connection: 230 V bzw. 50/60 Hz
- power: 150 W
- material width: max. 100 mm
- knob for follow-up relay internal
Optional facility:
- fitting base frame
Further technical data are available upon request!
> Easy Change M - winding unit
- process speed: flexible adaptable without modification
- installation: on a numerous textile machines (for braiding/weaving)
- spool size: standard fitting outer-ø 110 mm, length 160 mm
- spool change: tooless, even while machine is running
- spool draft: single packages can be removed individually
- layering: precise winding due to continuously variable traverse drive
Optional facility:
- fitting spool size
- separate drive
Further technical data are available upon request!
> Easy Change L - winding unit
- measures: approx. 50 x 41 x 66 cm
- mains connection: 400 V 3Ph 16 A ~
- power: 120 W
- spool size: standard fitting outer-ø 110 mm, length 160 mm
- speed: acc. to customers requirements
- spool quantity: standard fitting 6 spools
- installation: on a numerous textile machines (for braiding/weaving)
- spool size: standard fitting outer-ø 110 mm, length 160 mm
- spool change: tooless, even while machine is running
- spool draft: single packages can be removed individually
- layering: precise winding due to continuously variable traverse drive
Optional facility:
- fitting spool size
- number of spools
- fitting base frame
Further technical data are available upon request!
> Modus - width measurement
- measures: adaptable to existing system
- mains connection: 220 V
- width: adjustable from 1 - 160 mm
- control interval: every 15 seconds
- alarm signal: indicated by light
- measuring: tolerance adjustable in 1/10 steps
- simple menu guidance
- low in maintenance
- easy to install on a wide range of textile machines (for finishing/weaving/
braiding)
Optional facility:
- acoustic alarm signal
- background colour fitting to used material
- fitting base frame
Further technical data are available upon request!
Spare parts
> Art. 02511 - shaft tension spring
- fitting to automatic web weavers with NF/NFJK/NFRE technology
- length: approx. 300 mm
- width: approx. 9 mm/18 mm
> Art. 02563 - shaft support
- fitting to automatic web weavers with NF/NFJK/NFRE technology
- length: approx. 185 mm
- width: approx. 8 mm
- height: approx. 12 mm/22 mm
> Art. 02615 - transport fan belt
- length: approx. 410 mm
- width: approx. 16 mm
- height: approx. 4 mm
> Art. 02795 - thread tensioner
- cymbal tensioner for wrapping
- length: approx. 50 mm
- width: approx. 45 mm
- height: approx. 65 mm
> Art. 02796 - weft thread guide
- for two threads
- fitting to automatic web weavers with NF/NFJK/NFRE technology
- length: approx. 128 mm
- width: approx. 122 mm
- height: approx. 58 mm
> Art. 02721/X - arm spring
- for weft thread guide (02796)
- available measurements:
I. length 70 mm, ø wire 0,6 mm
II. length 100 mm ø wire 0,8 mm
> Art. 02705 - thread carrier
- for transport of support and weft thread
- fitting to automatic web weavers with NF/NFJK/NFRE technology
- height: approx. 50 mm
- outer ø: approx. 82 mm
- inner ø: approx. 10 mm
> Art. 02557/A - swivels
- for transport of support and weft thread
- available measurements:
I. A. 83.27 mm B. 166.16 mm
II. A. 70.05 mm B. 177.88 mm
III. A. 60.50 mm B. 186.46 mm
IV. A. 53.28 mm B. 193.04 mm
V. A. 46.03 mm B. 199.83 mm
VI. A. 41.28 mm B. 204.43 mm
> Art. 02456/L - pressure rolls
- gummed
- fitting to deep groove ball bearing 6202
- inner ø: approx. 35 mm/29 mm
- outer ø: approx. 50 mm
- covering: approx. 90 Shore
- available length:
I. 32 mm
II. 50 mm
III. 60 mm
IV. 80 mm
V. 140 mm
> Art. 02466/L - pressure rolls
- full steel
- fitting to deep groove ball bearing 6202
- inner ø: approx. 35 mm/29 mm
- outer ø: approx. 50 mm
- covering: approx. 90 Shore
- available length:
I. 32 mm
II. 50 mm
III. 60 mm
IV. 80 mm
V. 140 mm
> Art. 02346 - weft needle
- with eyelet
- bending suitable for automatic web weavers NFRE (2-130) technology
- length: approx. 156 mm
- outer ø: approx.. 3.5 mm
- inner ø: approx.. 1.9 mm
> Art. 02305 - weft needle
- without eyelet
- bending suitable for automatic web weavers NFRE (2-130) technology
- length: approx. 152 mm
> Art. 02255 - eyelet made of hard metall
- height: approx. 1.2 mm
- inner ø: approx. 1.9 mm
- outer ø: approx. 3.5 mm
> Art. 02531 - magnet
-fitting to automatic web weavers with heald frame motion
- length: approx. 42 mm
- width: approx. 45 mm
- height: approx. 8 mm
Cardboard spools

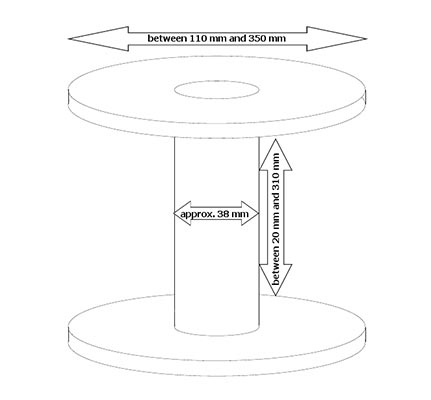

cardboard spools "VARIO - system"
consists of:
a) 2 inserted parts plastic
b) 2 round blank 2 mm cardboard, inner ø fix 38 mm
c) 1 tube 2 mm cardboard, inner ø fix 38 mm, spirally twisted
You could choose the measures of your cardboard spool as follows:
For example: B4 = 140 x 30 mm
Outer ø of round blank in mm:
A
B
C
D
E
F
G
110
140
180
205
250
300
350
Tube length in mm:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
20
25
28
30
35
45
56
65
70
75
80
90
95
100
105
125
150
155
190
200
210
250
310
On inquiry further tube lengths are possible!
Textile products
The focus of our work is on planning, design and manufacturing of special purpose machines for the textile industry. In addition to these services, we use existing know-how for our own production and manufacture for instance narrow fabrics for the following areas:
- Home textile industry
- Piety branch
- Furniture manufacturing
Please contact us for any inquiries in this sector separately.
